Architectural · A-JT53Z

Roof Guard Base at Roof Eave

Materials

Steel

Elements

Columns Roofs

Connections

Shear Tab / Single Plate Bolted Connection

About this detail

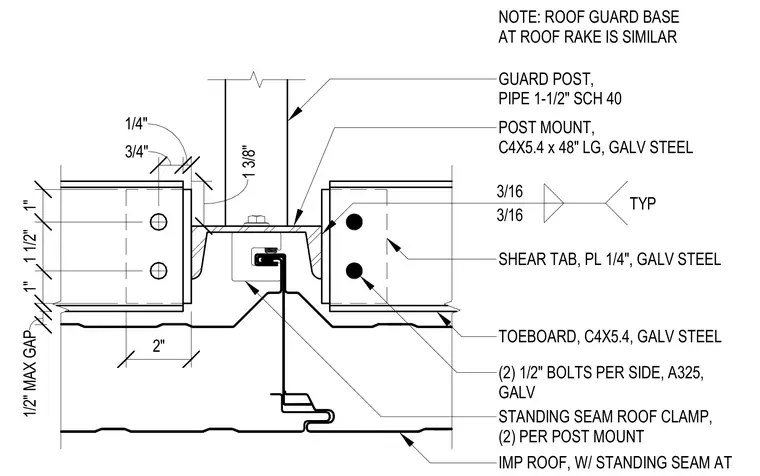

A 1-1/2 inch schedule 40 pipe guard post connects to a 48 inch long galvanized steel C4x5.4 post mount. The post mount attaches to the standing seam roof using two standing seam roof clamps. Galvanized steel C4x5.4 toeboards secure to the post mount on each side using a one-quarter inch thick shear tab and two one-half inch diameter ASTM A325 galvanized bolts per side.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
