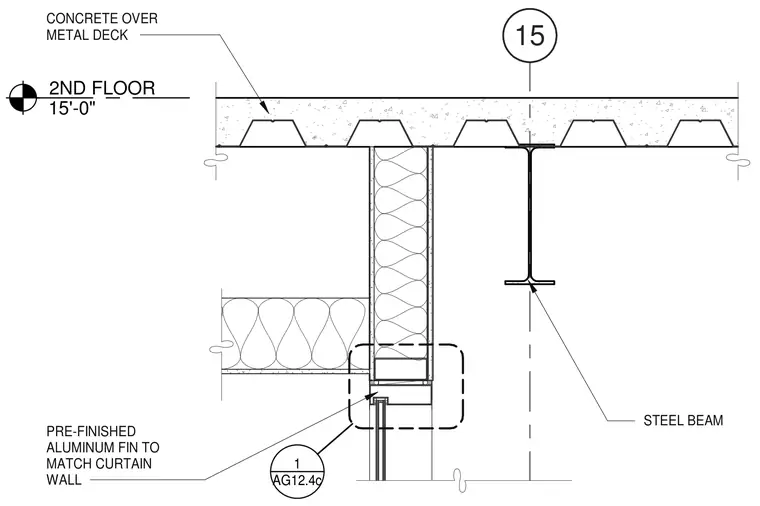

A pre-finished aluminum fin matching the curtain wall interfaces with the wall head assembly directly below the second floor slab. The floor consists of concrete over metal deck supported by a structural steel beam. The assembly maintains alignment with the vertical glazing and floor edge.
15 2ND FLOOR 15'-0" CONCRETE OVER METAL DECK PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL STEEL BEAM AG12.4c 1
