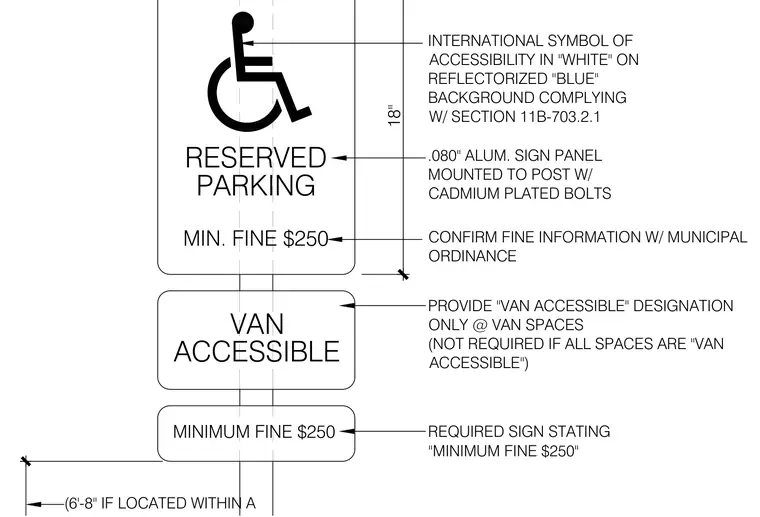

An eighteen-inch .080-inch thick aluminum sign panel mounts to a post with cadmium-plated bolts, featuring the international symbol of accessibility in white on a reflectorized blue background complying with Section 11B-703.2.1. Additional panels provide van accessible designation only at van spaces and display the required minimum fine information confirmed with municipal ordinance.
VAN ACCESSIBLE RESERVED PARKING MIN. FINE $250 18" .080" ALUM. SIGN PANEL MOUNTED TO POST W/ CADMIUM PLATED BOLTS CONFIRM FINE INFORMATION W/ MUNICIPAL ORDINANCE PROVIDE "VAN ACCESSIBLE" DESIGNATION ONLY @ VAN SPACES (NOT REQUIRED IF ALL SPACES ARE "VAN ACCESSIBLE") INTERNATIONAL SYMBOL OF ACCESSIBILITY IN "WHITE" ON REFLECTORIZED "BLUE" BACKGROUND COMPLYING W/ SECTION 11B-703.2.1 (6'-8" IF LOCATED WITHIN A MINIMUM FINE $250 REQUIRED SIGN STATING "MINIMUM FINE $250"
