Architectural · A-JSQMF

Ceiling Edge Condition at Sloping Wall

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Ceilings Floors / Slabs Decks Bracing

Connections

Bracing Connection

About this detail

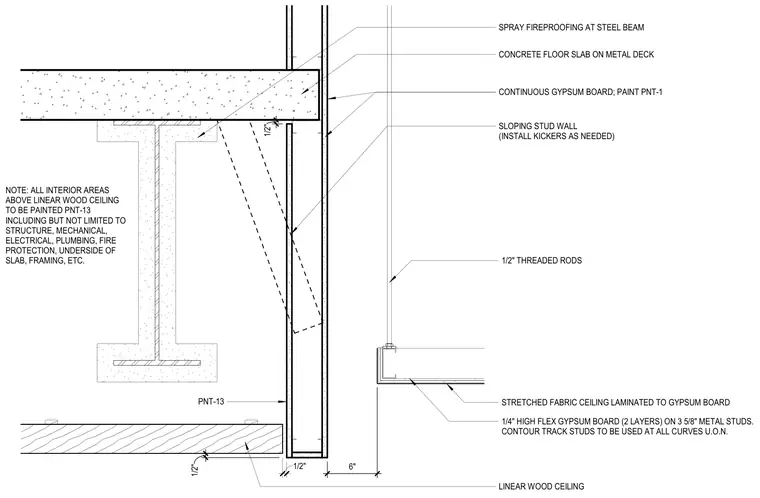

A ceiling edge condition meets a sloping stud wall constructed with three-and-five-eighths-inch metal studs and two layers of one-quarter-inch high flex gypsum board, using contour track studs at all curves unless otherwise noted. The wall is positioned adjacent to a structural steel beam supporting a concrete floor slab on metal deck with spray fireproofing. A linear wood ceiling is suspended below, maintaining a half-inch clearance from the vertical wall finish, which is painted with PNT-1. A separate stretched fabric ceiling laminated to gypsum board is suspended nearby using half-inch threaded rods. All interior areas above the linear wood ceiling are painted with PNT-13, including the structure, mechanical, electrical, plumbing, fire protection, underside of the slab, and framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
