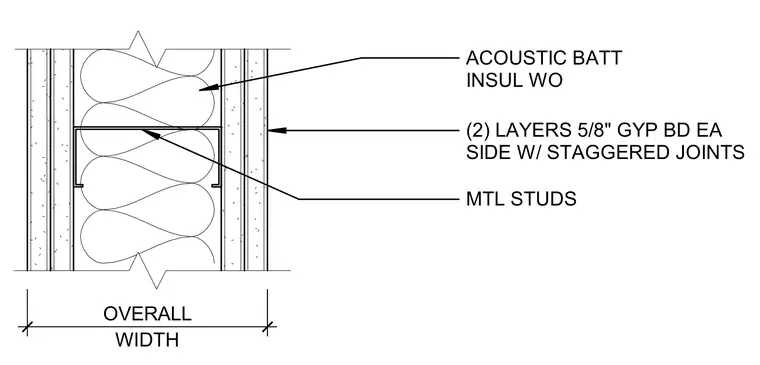

Metal studs frame the partition wall, receiving acoustic batt insulation within the stud cavity to reduce sound transmission. Two layers of five-eighths inch gypsum board face each side of the studs, featuring staggered joints for improved acoustical performance.
(2) LAYERS 5/8" GYP BD EA SIDE W/ STAGGERED JOINTS MTL STUDS ACOUSTIC BATT INSUL WO WIDTH OVERALL
