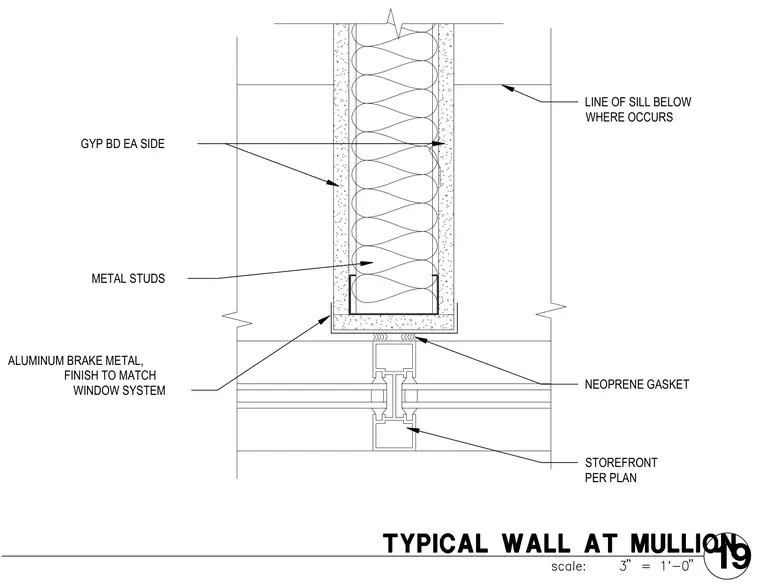

A metal stud partition terminates above a storefront window system. The metal studs are framed with gypsum board on each side and wrapped at the base with aluminum brake metal finished to match the window system. A neoprene gasket provides a resilient separation layer between the aluminum brake metal and the storefront head profile below. The storefront assembly is sized and positioned per plan.
LINE OF SILL BELOW WHERE OCCURS METAL STUDS NEOPRENE GASKET STOREFRONT PER PLAN GYP BD EA SIDE ALUMINUM BRAKE METAL, FINISH TO MATCH WINDOW SYSTEM
