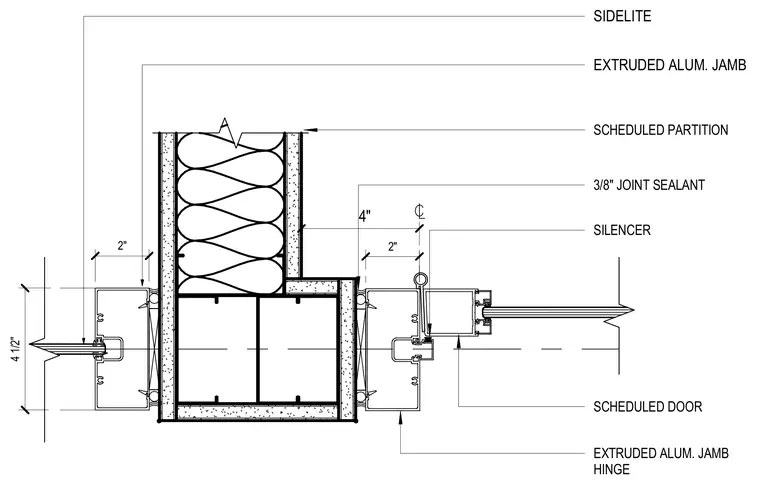

An extruded aluminum door jamb with a hinge connects adjacent to a scheduled partition and a sidelite frame. A 3/8-inch joint sealant is applied between the partition and the frame assembly. A silencer is positioned along the door stop of the aluminum jamb. Dimensions of 2 inches, 4 inches, and 4 1/2 inches establish the framing clearances.
SCHEDULED DOOR EXTRUDED ALUM. JAMB HINGE SCHEDULED PARTITION SILENCER EXTRUDED ALUM. JAMB SIDELITE 2" 4 1/2" 3/8" JOINT SEALANT 2" 4"
