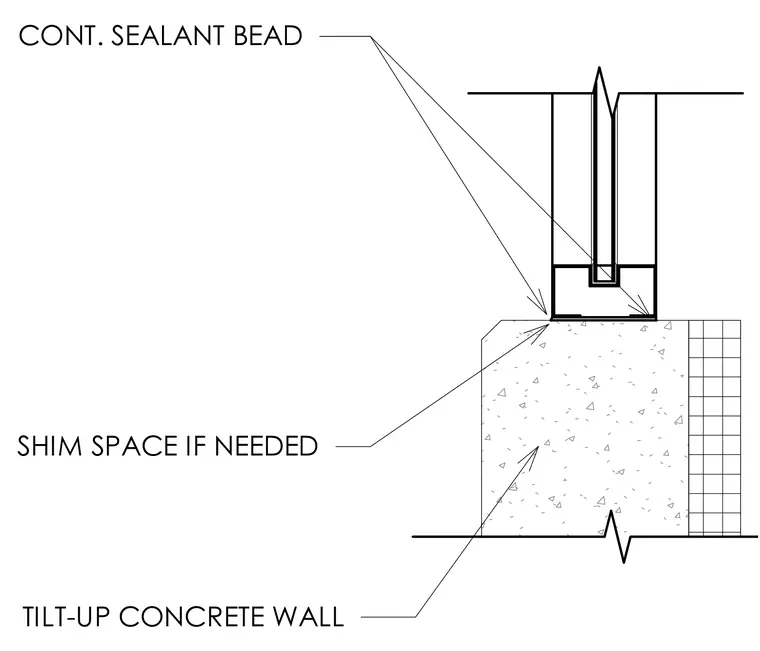

A continuous sealant bead seals the joint above the tilt-up concrete wall panel. A shim space is provided below the framed assembly as needed. The tilt-up concrete wall supports the upper assembly with a conditioned gap.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD
