Architectural · A-JSJ78

Roof Ladder Top Access Safety Swing Gate Detail

Elements

About this detail

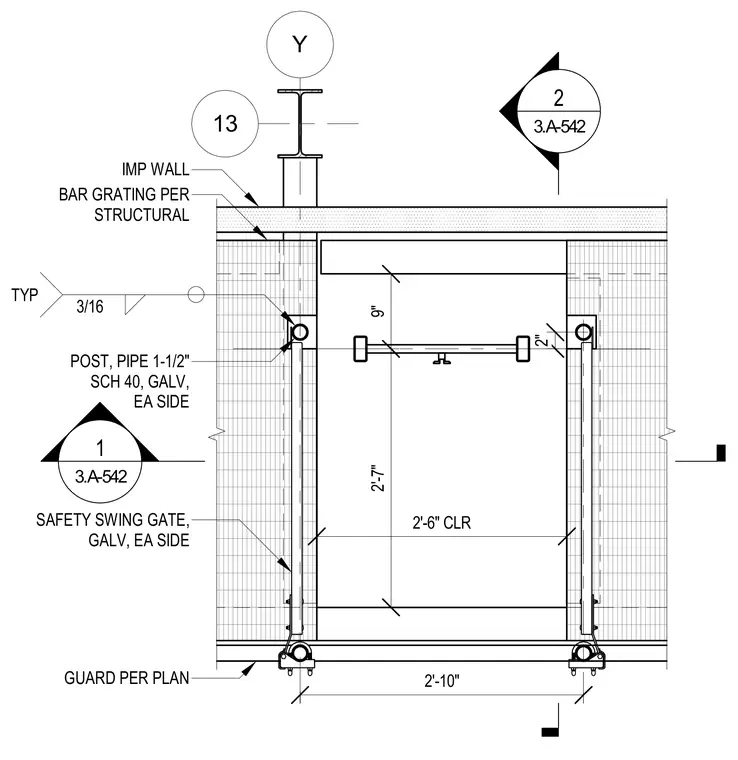

A galvanized safety swing gate is mounted between one-and-one-half-inch schedule forty galvanized pipe posts on each side, providing ladder access through an insulated metal panel wall. Bar grating spans the opening per structural drawings, with typical three-sixteenths inch welds securing the components. The gate assembly provides a two-foot six-inch clear opening width, bounded by guardrails positioned per plan.
