This structural steel connection details the Rae joint assembly at elevation 124'-5". The connection utilizes a typical cap plate secured with two bolt stacks per cap plate, shipped separately for field installation. Each assembly consists of a three-quarter-inch diameter by six-and-a-half-inch ASTM A325 bolt paired with an ASTM F959 Type 325 direct tension indicator washer, ASTM F436 washers, half-inch thick plate washers per detail 8/3.S-514, and an ASTM A563 nut. The underlying column shape and orientation varies per the structural grid.

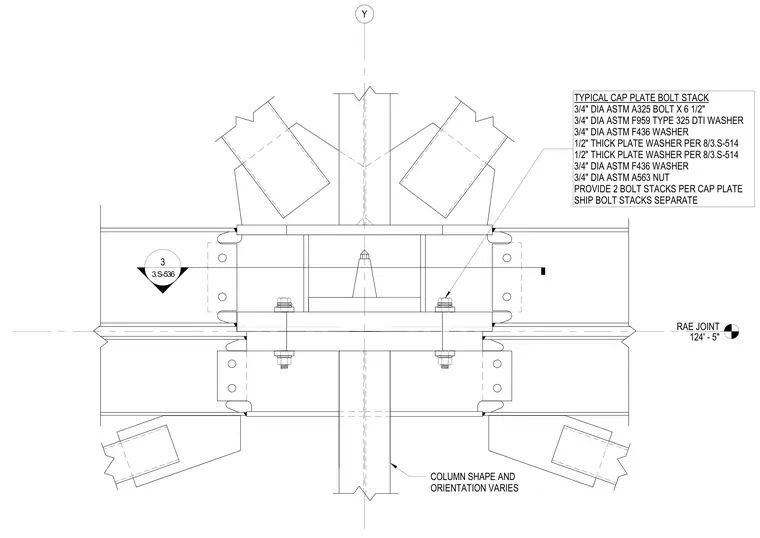

RAE JOINT 124' - 5" Y TYPICAL CAP PLATE BOLT STACK 3/4" DIA ASTM A325 BOLT X 6 1/2" 3/4" DIA ASTM F959 TYPE 325 DTI WASHER 3/4" DIA ASTM F436 WASHER 1/2" THICK PLATE WASHER PER 8/3.S-514 1/2" THICK PLATE WASHER PER 8/3.S-514 3/4" DIA ASTM F436 WASHER 3/4" DIA ASTM A563 NUT PROVIDE 2 BOLT STACKS PER CAP PLATE SHIP BOLT STACKS SEPARATE 3 3.S-536 COLUMN SHAPE AND ORIENTATION VARIES
