Architectural · A-JRZ7R

Transition Detail at Stone Cladding and EIFS Wall

Materials

Cold-formed Steel Timber / Wood Masonry / CMU Stone Glass / Glazing Metal (misc.)

Elements

Facades / Cladding Insulation Reinforcing

About this detail

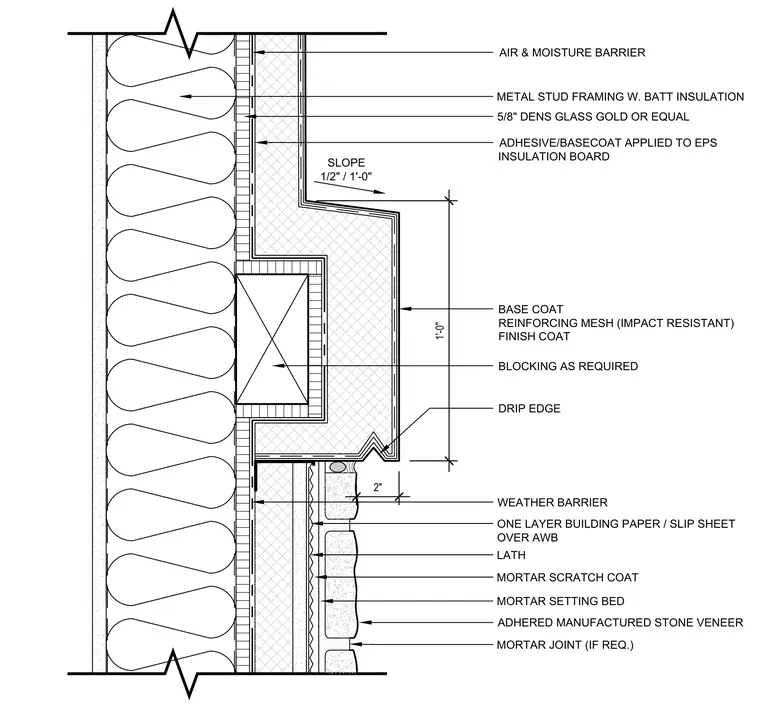

A junction between an adhered manufactured stone veneer assembly and an exterior insulation and finish system on cold-formed steel stud framing. The backup wall consists of metal stud framing with batt insulation, sheathed with 5/8-inch DensGlass Gold or equal, and covered by an air and moisture barrier. The upper portion features EPS insulation board with an adhesive and base coat, reinforced with an impact-resistant mesh, and finished with a textured coat, incorporating a sloped profile and metal drip edge over wood blocking. Below the transition, the stone veneer is applied over lath, a mortar scratch coat, and a mortar setting bed, backed by a weather barrier and an additional layer of building paper or slip sheet over the air and moisture barrier.
