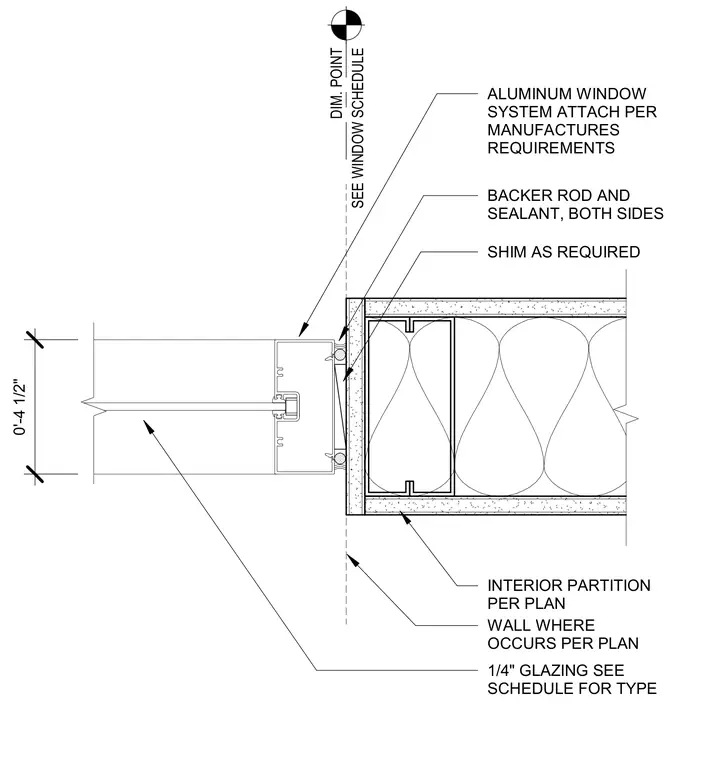

An aluminum storefront window system attaches to an interior partition per manufacturer requirements with shims as required for proper alignment. Backer rod and sealant are applied to both sides of the window frame joint. The interior partition is sized per plan and glazed with one-quarter-inch glass specified in the window schedule.
INTERIOR PARTITION PER PLAN BACKER ROD AND SEALANT, BOTH SIDES SHIM AS REQUIRED ALUMINUM WINDOW SYSTEM ATTACH PER MANUFACTURES REQUIREMENTS SEE WINDOW SCHEDULE DIM. POINT 1/4" GLAZING SEE SCHEDULE FOR TYPE 0'-4 1/2" WALL WHERE OCCURS PER PLAN
