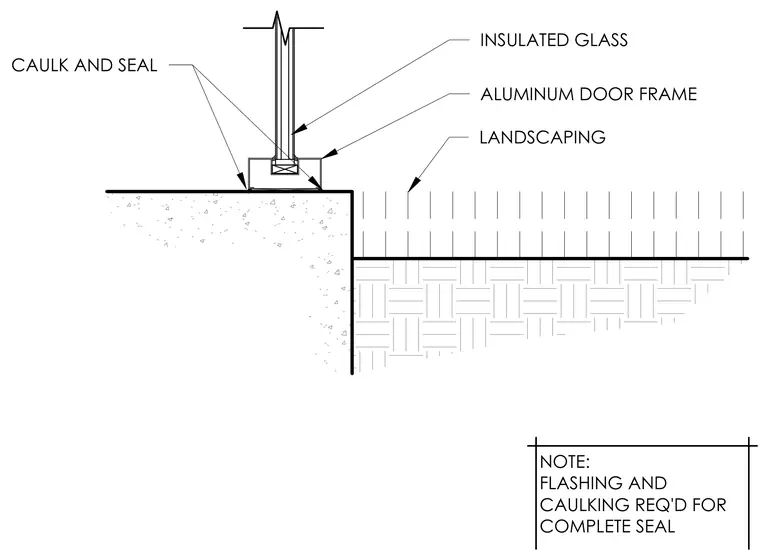

An aluminum door frame supports an insulated glass unit resting above a concrete substrate. Continuous caulk and seal are applied at the frame joints and base for weatherproofing. Adjacent landscaping meets the exterior edge of the slab. Flashing and caulking are required for a complete seal.
INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL
