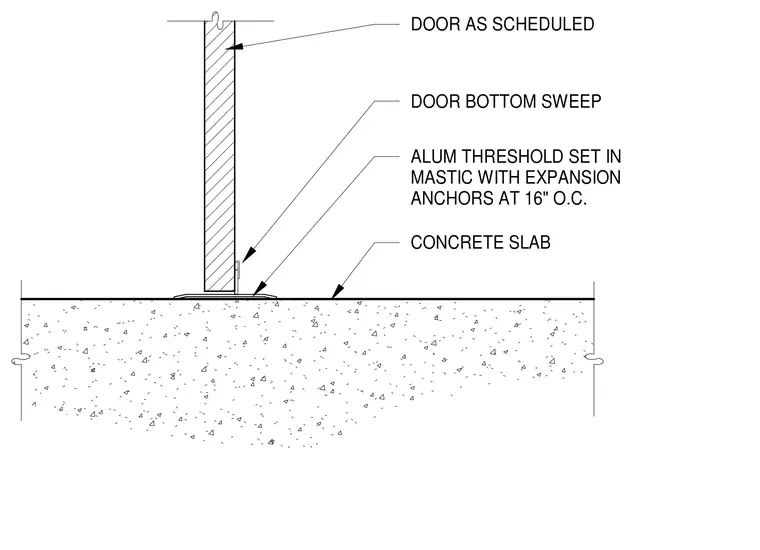

An interior fiber-reinforced polymer door bears directly on a concrete slab at the threshold. An aluminum threshold is set in mastic and secured to the concrete slab with expansion anchors spaced at sixteen inches on center. A door bottom sweep is attached to the base of the door panel.
DOOR BOTTOM SWEEP CONCRETE SLAB ALUM THRESHOLD SET IN MASTIC WITH EXPANSION ANCHORS AT 16" O.C. DOOR AS SCHEDULED
