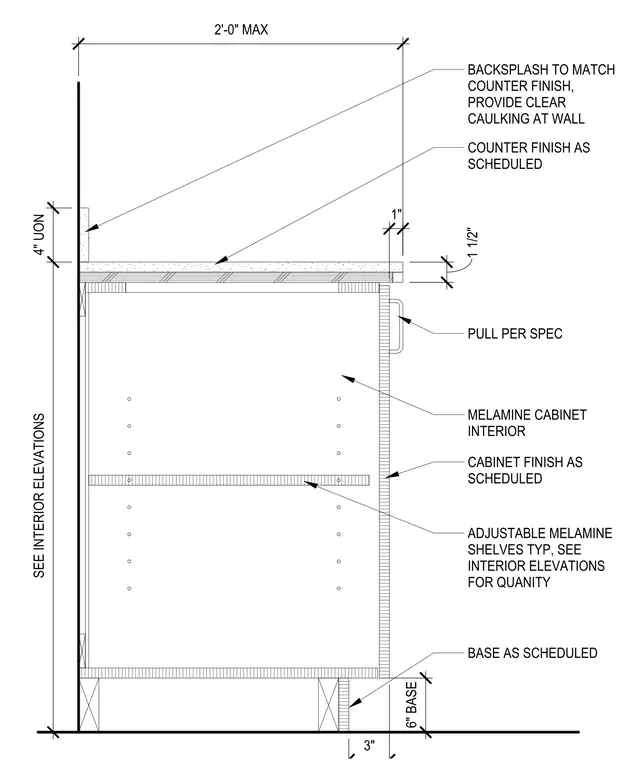

This base cabinet assembly consists of a melamine interior with adjustable shelving and a finish as scheduled. The unit is supported by a six-inch base set back three inches from the cabinet face. A countertop with a one-and-a-half-inch thickness and a one-inch overhang is topped by a four-inch backsplash, which is sealed to the wall with clear caulking. The cabinet door includes a pull specified in the project documents.
