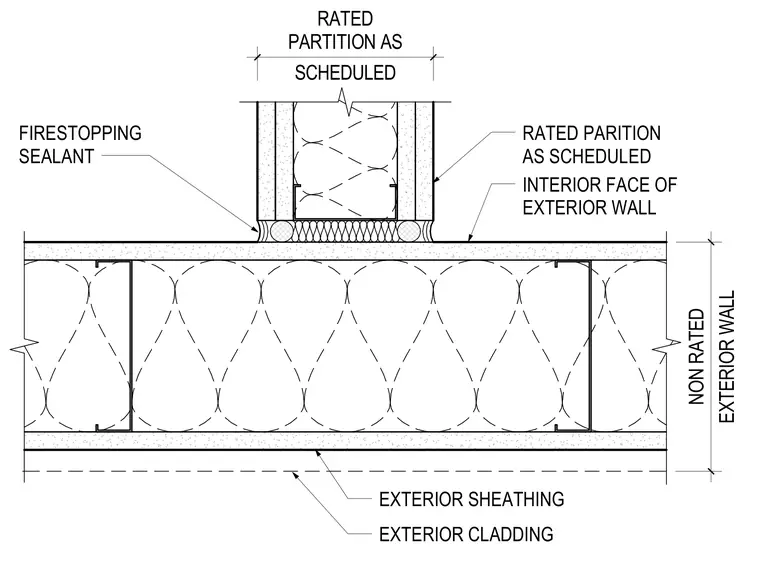

A rated partition abuts the interior face of a non-rated exterior wall. Firestopping sealant seals the joint at the perimeter where the partitions meet. The exterior wall consists of interior framing, exterior sheathing, and exterior cladding as scheduled.
EXTERIOR SHEATHING RATED PARITION AS SCHEDULED INTERIOR FACE OF EXTERIOR WALL FIRESTOPPING SEALANT EXTERIOR CLADDING SCHEDULED RATED PARTITION AS EXTERIOR WALL NON RATED
