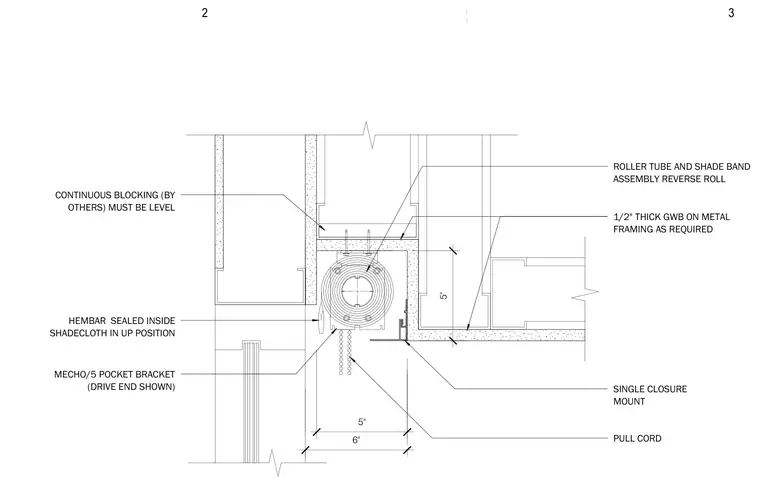

A Mecho/5 pocket bracket mounts the roller tube and shade band assembly within a recessed gypsum wallboard ceiling pocket. Continuous wood blocking by others provides the primary overhead support for the shade mechanism. Half-inch thick gypsum wallboard on metal framing lines the pocket recess and incorporates a single closure mount at the opening. The reverse roll shadecloth features a sealed hembar positioned inside the shadecloth when fully retracted.
1/2" THICK GWB ON METAL FRAMING AS REQUIRED PULL CORD SINGLE CLOSURE MOUNT ROLLER TUBE AND SHADE BAND ASSEMBLY REVERSE ROLL HEMBAR SEALED INSIDE SHADECLOTH IN UP POSITION CONTINUOUS BLOCKING (BY OTHERS) MUST BE LEVEL MECHO/5 POCKET BRACKET (DRIVE END SHOWN) 5" 6" 5" 2 3
