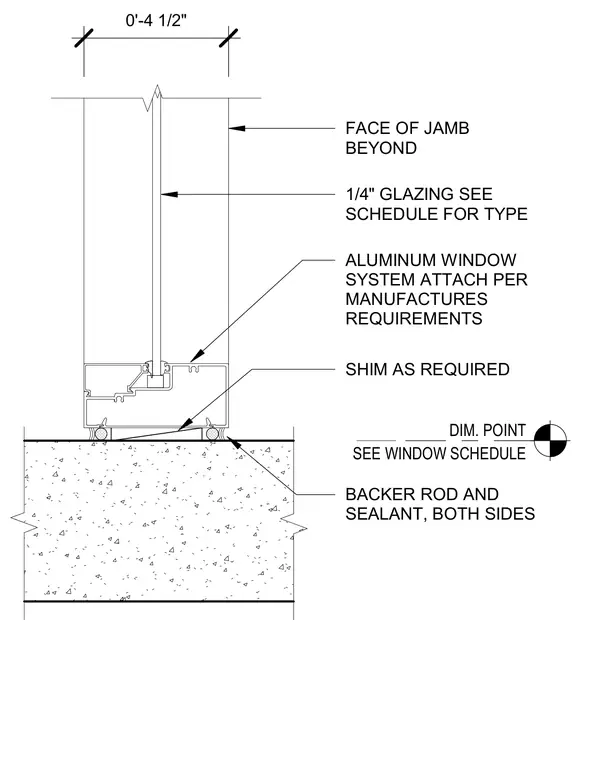

An aluminum window system sits on shims over a substrate with a dimensioned width of zero feet four and one-half inches. The assembly incorporates one-quarter inch glazing conforming to the window schedule. Backer rod and sealant are installed on both sides of the sill joint for weather and air sealing. The face of the jamb extends beyond the primary window profile.
BACKER ROD AND SEALANT, BOTH SIDES SHIM AS REQUIRED ALUMINUM WINDOW SYSTEM ATTACH PER MANUFACTURES REQUIREMENTS SEE WINDOW SCHEDULE DIM. POINT 1/4" GLAZING SEE SCHEDULE FOR TYPE FACE OF JAMB BEYOND 0'-4 1/2"
