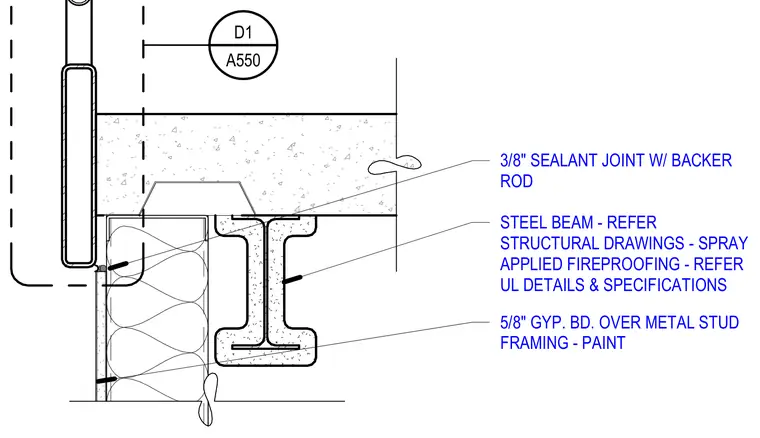

A structural steel beam supports a concrete stair landing and receives spray-applied fireproofing per Underwriters Laboratories details and specifications. A three-eighths-inch sealant joint with backer rod occurs at the juncture between the landing edge and adjacent construction. Below the steel beam, cold-formed metal stud framing supports a five-eighths-inch gypsum board finish painted as specified.
5/8" GYP. BD. OVER METAL STUD FRAMING - PAINT A550 D1 STEEL BEAM - REFER STRUCTURAL DRAWINGS - SPRAY APPLIED FIREPROOFING - REFER UL DETAILS & SPECIFICATIONS 3/8" SEALANT JOINT W/ BACKER ROD
