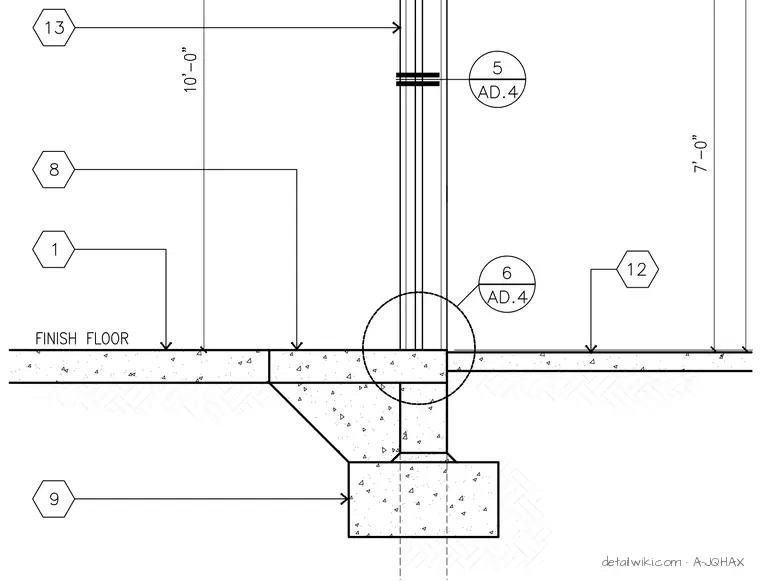

An interior partition wall bears directly on a thickened concrete slab-on-grade section, which transitions to a standard slab-on-grade thickness. The assembly includes finish floor elevation, thickened slab footing, and adjacent slab conditions. Vertical dimensions of 10'-0" and 7'-0" establish the spatial relationship between the wall and the floor finish.
