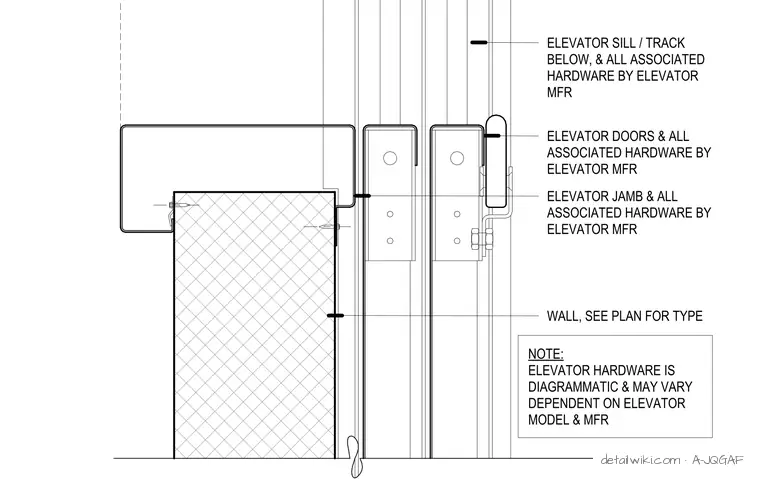

Horizontal section of an elevator door jamb assembly, including the door, jamb, and sill track. Wall construction follows the floor plan. The elevator manufacturer provides and installs the elevator doors, jamb, sill track, and all associated hardware. Hardware is diagrammatic and varies based on the specific elevator model and manufacturer requirements.
