Architectural · A-JQDZV

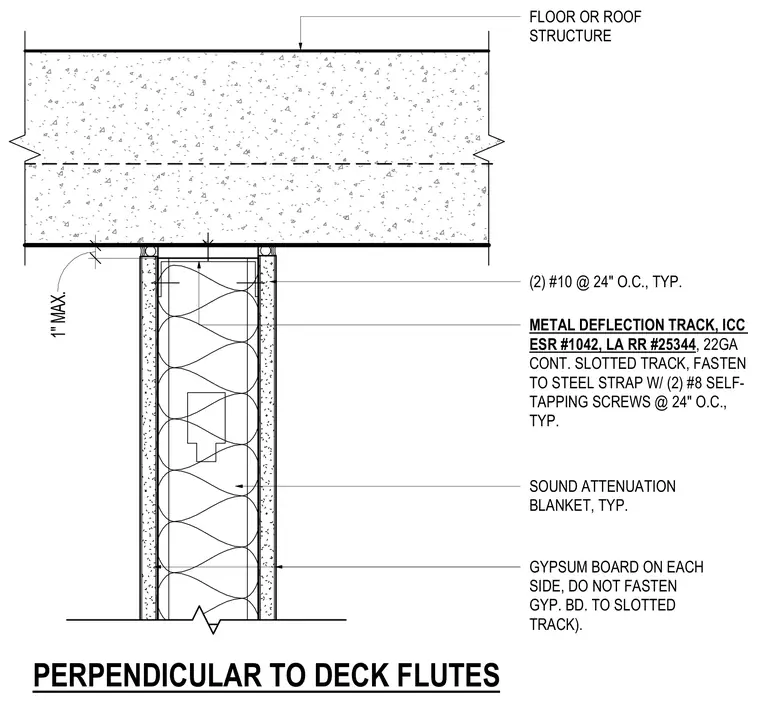

Partition Head Detail Perpendicular to Deck Flutes

Materials

Steel Metal (misc.)Gypsum / Drywall

Elements

Partitions Roofs Floors / Slabs Decks

Connections

Deck Attachment

About this detail

The partition head aligns perpendicular to the deck flutes with a maximum one-inch clearance below the concrete floor or roof structure. A continuous twenty-two gauge slotted metal deflection track fastens to the structure with two number ten screws at twenty-four inches on center typically. Sound attenuation blanket fills the wall cavity between gypsum board layers applied to each side. Gypsum board remains unfastened to the slotted track to allow vertical deflection.
