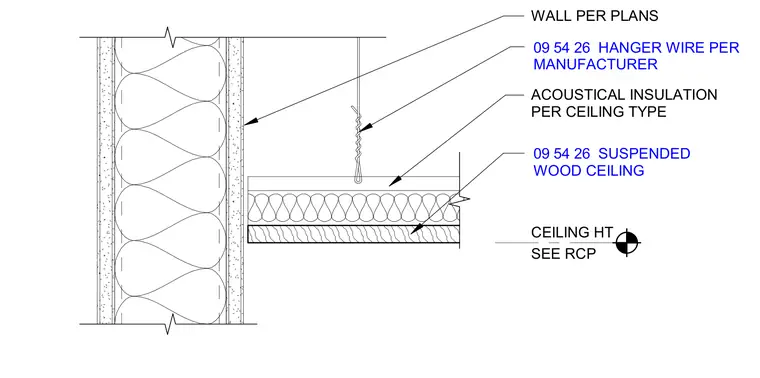

A suspended wood ceiling terminates at an adjacent wall assembly per plans. Hanger wires sized per the manufacturer support the ceiling framework. Acoustical insulation is installed within the ceiling plenum per the specified ceiling type. Ceiling height is coordinated with the reflected ceiling plan.
CEILING HT SEE RCP 09 54 26 HANGER WIRE PER MANUFACTURER WALL PER PLANS ACOUSTICAL INSULATION PER CEILING TYPE 09 54 26 SUSPENDED WOOD CEILING
