An interior aluminum door frame with flush trim is anchored to a cold-formed steel stud header or boxed header, utilizing double studs at the jamb condition. Four-inch batt insulation is installed within the stud cavity where required. Five-eighths-inch gypsum board finishes both sides of the partition wall, intersecting perpendicular walls as indicated. A door specified per the door schedule hangs within the aluminum frame.

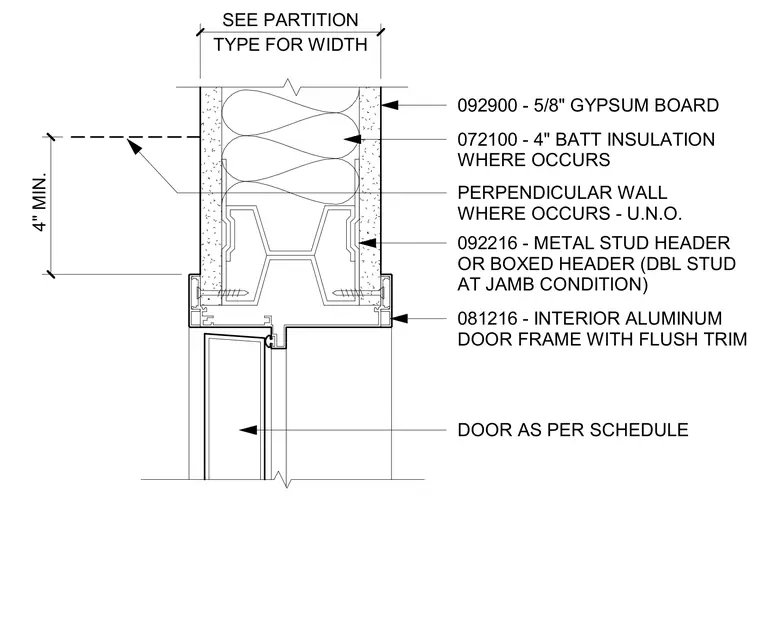

092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081216 - INTERIOR ALUMINUM DOOR FRAME WITH FLUSH TRIM 092900 - 5/8" GYPSUM BOARD PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE TYPE FOR WIDTH SEE PARTITION 072100 - 4" BATT INSULATION WHERE OCCURS 4" MIN.
