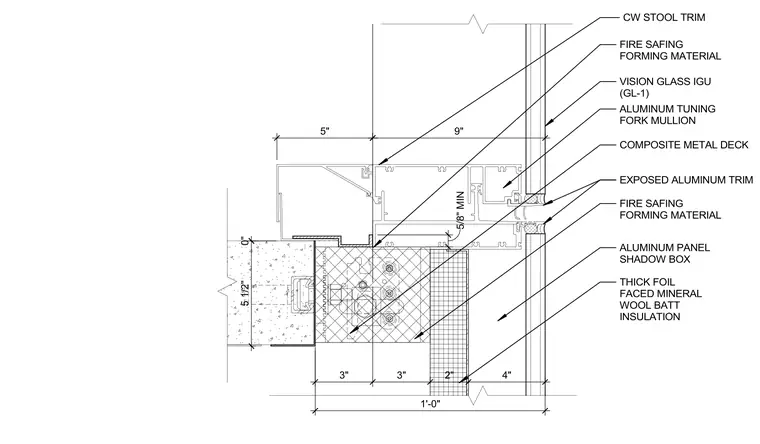

An aluminum tuning fork mullion interfaces with a concrete composite metal deck slab edge, incorporating vision glass IGU and an aluminum panel shadow box. Thick foil-faced mineral wool batt insulation lines the spandrel zone with fire safing forming material installed at floor levels. CW stool trim and exposed aluminum trim finish the interior and exterior junctions.
VISION GLASS IGU (GL-1) 9" ALUMINUM TUNING FORK MULLION COMPOSITE METAL DECK FIRE SAFING FORMING MATERIAL ALUMINUM PANEL SHADOW BOX THICK FOIL FACED MINERAL WOOL BATT INSULATION CW STOOL TRIM FIRE SAFING FORMING MATERIAL 1'-0" 3" 3" 2" 4" 0" 5 1/2" 5/8" MIN EXPOSED ALUMINUM TRIM 5"
