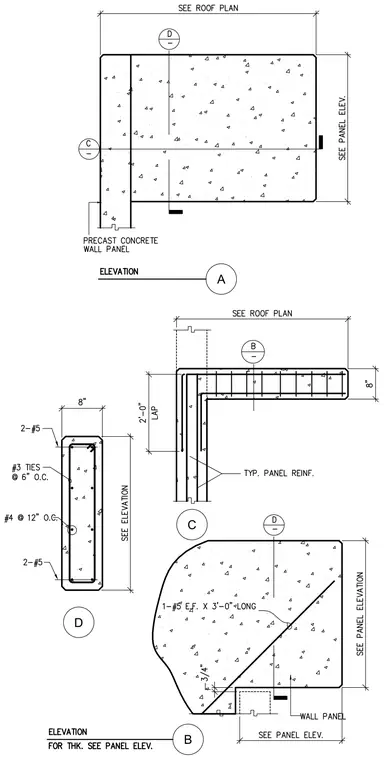

Precast concrete wall panels feature internal reinforcement including two number five bars top and bottom, number three ties at six inches on center, and number four bars at twelve inches on center. Corner details show standard panel reinforcement with a two-foot lap length. Panel elevations and sections reference roof plans and panel elevations for thicknesses and heights.
