An interior gypsum board partition on two-and-a-half-inch metal framing terminates near an exterior aluminum curtain wall sill with a quarter-inch joint sealant gap. The curtain wall incorporates a stack joint with glass types GL-1 and GL-2, backed by curtain wall insulation and fire safing at the floor line. The interior finish includes gypsum board, paint PNT-4, base CTB-1, and flooring CT-6 over the structural floor assembly.

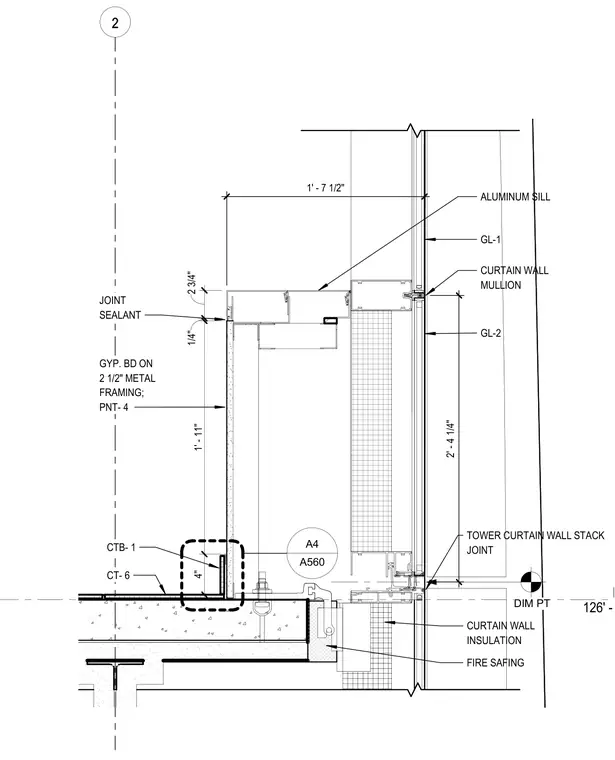

2 F2 126' - 0" DIM PT GL-2 CURTAIN WALL MULLION 2 ' - 4 1 / 4 " GL-1 FIRE SAFING CURTAIN WALL INSULATION ALUMINUM SILL 1 ' - 7 1 / 2 " TOWER CURTAIN WALL STACK JOINT 4 " 1 ' - 1 1 " 1 / 4 " 2 3 / 4 " GYP. BD ON 2 1/2" METAL FRAMING; PNT- 4 CTB- 1 CT- 6 A560 A4 JOINT SEALANT
