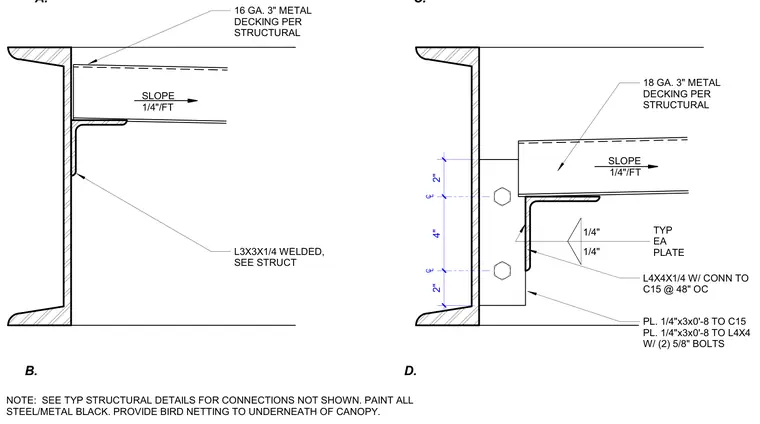

Steel framing connections for a trash enclosure canopy feature metal decking supported by structural steel angles and channel members. Detail A includes a 3-inch 16-gauge metal decking sloping at 1/4 inch per foot, supported by an L3x3x1/4 angle welded to the structural steel channel. Detail D includes an L4x4x1/4 angle connected to a C15 channel at 48 inches on center using a 1/4-inch by 3-inch by 0-foot 8-inch plate, secured with two 5/8-inch bolts per plate and 1/4-inch fillet welds. All exposed steel is specified to be painted black, and bird netting is required beneath the canopy structure.
L3X3X1/4 WELDED, SEE STRUCT SLOPE 1/4"/FT B. A. 16 GA. 3" METAL DECKING PER STRUCTURAL SLOPE 1/4"/FT D. C. CL CL 2" 4" 2" L4X4X1/4 W/ CONN TO C15 @ 48" OC PL. 1/4"x3x0'-8 TO C15 PL. 1/4"x3x0'-8 TO L4X4 W/ (2) 5/8" BOLTS TYP EA PLATE 1/4" 1/4" 18 GA. 3" METAL DECKING PER STRUCTURAL NOTE: SEE TYP STRUCTURAL DETAILS FOR CONNECTIONS NOT SHOWN. PAINT ALL STEEL/METAL BLACK. PROVIDE BIRD NETTING TO UNDERNEATH OF CANOPY.
