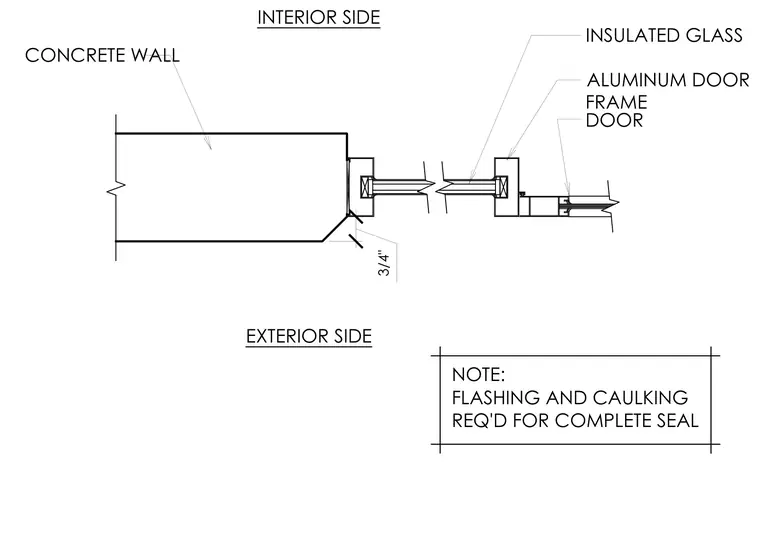

An aluminum door frame and insulated glass sidelite set against a concrete wall with flashing and caulking required for a complete seal. The assembly features an aluminum door frame anchored adjacent to a concrete wall with a three-quarter-inch joint. Insulated glass is installed within the aluminum frame. Flashing and caulking are required along the exterior and interior junctions for a complete seal.
NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL DOOR INSULATED GLASS 3/4" INTERIOR SIDE EXTERIOR SIDE CONCRETE WALL ALUMINUM DOOR FRAME
