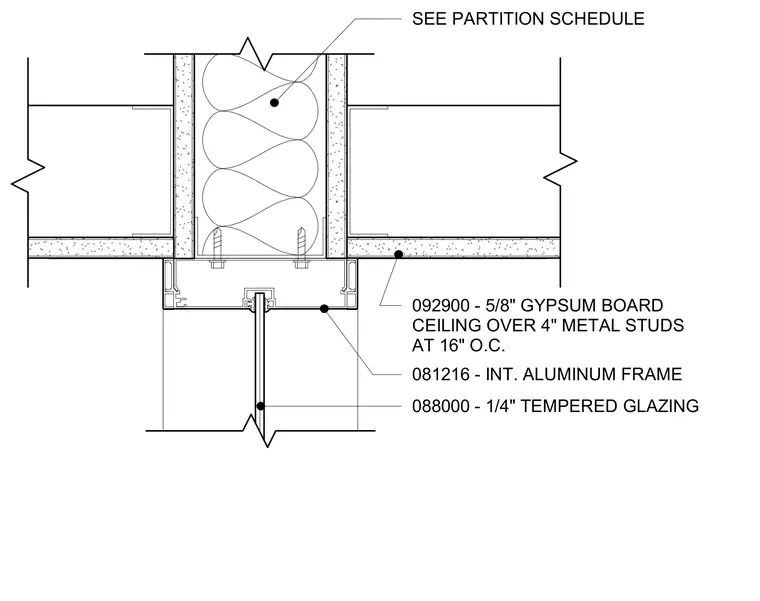

An interior aluminum frame secures a one-quarter-inch tempered glazing panel at the window head condition. The head frame fastens directly into the underside of a partition framed with four-inch metal studs spaced at sixteen inches on center. Both sides of the partition and the adjacent ceiling plane are finished with five-eighths-inch gypsum board over metal framing.
088000 - 1/4" TEMPERED GLAZING SEE PARTITION SCHEDULE 081216 - INT. ALUMINUM FRAME 092900 - 5/8" GYPSUM BOARD CEILING OVER 4" METAL STUDS AT 16" O.C.
