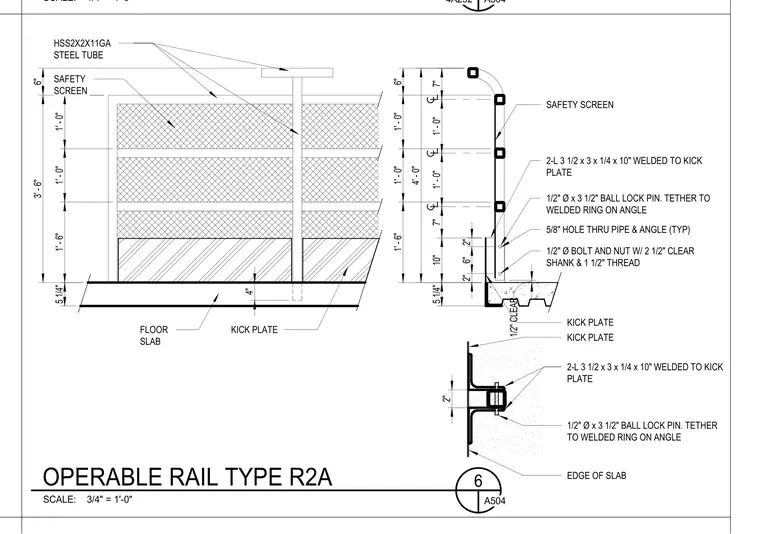

This operable rail assembly is anchored to a concrete floor slab using a kick plate and structural steel components. The safety screen is secured with pairs of angles welded to the kick plate and fastened with half-inch diameter by three-and-a-half-inch ball lock pins tethered to welded rings on the angles. Additional connections utilize half-inch diameter bolts and nuts with two-and-a-half-inch clear shanks and one-and-a-half-inch threads through five-eighth-inch holes in the pipe and angle. The vertical supports consist of hollow structural section steel tubes measuring two inches by two inches by eleven gauge.
1' - 0" 1' - 0" 1' - 6" 5 1/4" 6" 3' - 6" KICK PLATE FLOOR SLAB 7" 1' - 0" 1' - 0" 7" 10" 5 1/4" 4" HSS2X2X11GA STEEL TUBE KICK PLATE 1/2" Ø x 3 1/2" BALL LOCK PIN. TETHER TO WELDED RING ON ANGLE 1/2" Ø BOLT AND NUT W/ 2 1/2" CLEAR SHANK & 1 1/2" THREAD SAFETY SCREEN 1/2" CLEAR SAFETY SCREEN 2" 6" 2" 4' - 0" 6" 1' - 0" 1' - 0" 1' - 6" 2-L 3 1/2 x 3 x 1/4 x 10" WELDED TO KICK PLATE 5/8" HOLE THRU PIPE & ANGLE (TYP) 2" 2-L 3 1/2 x 3 x 1/4 x 10" WELDED TO KICK PLATE 1/2" Ø x 3 1/2" BALL LOCK PIN. TETHER TO WELDED RING ON ANGLE EDGE OF SLAB KICK PLATE SCALE: 1/4" = 1'-0" 4A292 A504 SCALE: 3/4" = 1'-0" A504 6 OPERABLE RAIL TYPE R2A
