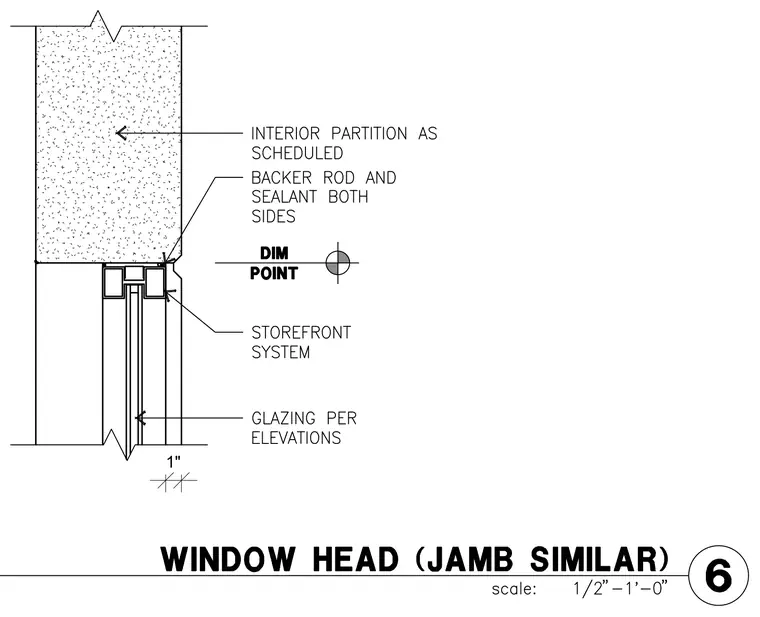

An interior partition as scheduled abuts the storefront system head, with a backer rod and sealant applied to both sides of the joint. The storefront system frames the glazing per elevations, maintaining a one-inch dimension point from the partition face. The head and jamb share a similar connection detail.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
