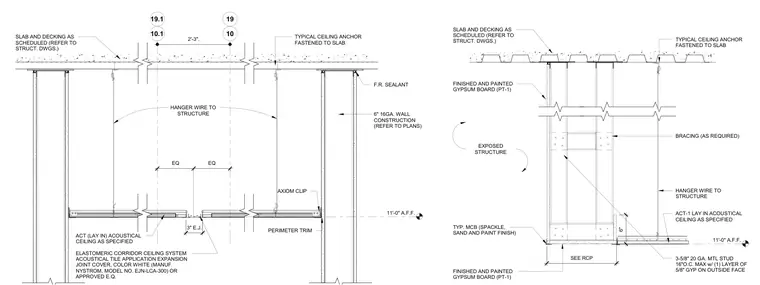

An expansion joint assembly spans a corridor ceiling at an elevation of 11'-0" above finished floor. A three-inch wide white expansion joint cover manufactured by Nystrom, model EJN-LCA-300 or approved equal, spans the opening between acoustical ceiling tile systems hung with hanger wires attached to the overhead concrete slab and metal decking. Perimeter trim and Axiom clips finish the ceiling edges alongside six-inch 16-gauge metal stud walls fire-safed with fire-resistant sealant. Suspended framing incorporates typical ceiling anchors and lateral bracing where required.
3-5/8" 20 GA. MTL STUD 16"O.C. MAX w/ (1) LAYER OF 5/8" GYP ON OUTSIDE FACE TYPICAL CEILING ANCHOR FASTENED TO SLAB FINISHED AND PAINTED GYPSUM BOARD (PT-1) SLAB AND DECKING AS SCHEDULED (REFER TO STRUCT. DWGS.) TYP. MCB (SPACKLE, SAND AND PAINT FINISH) 11'-0" A.F.F. ACT-1 LAY IN ACOUSTICAL CEILING AS SPECIFIED HANGER WIRE TO STRUCTURE 6" SEE RCP BRACING (AS REQUIRED) EXPOSED STRUCTURE FINISHED AND PAINTED GYPSUM BOARD (PT-1) ACT (LAY IN) ACOUSTICAL CEILING AS SPECIFIED PERIMETER TRIM ELASTOMERIC CORRIDOR CEILING SYSTEM ACOUSTICAL TILE APPLICATION EXPANSION JOINT COVER, COLOR WHITE (MANUF. NYSTROM, MODEL NO. EJN-LCA-300) OR APPROVED E.Q. AXIOM CLIP TYPICAL CEILING ANCHOR FASTENED TO SLAB SLAB AND DECKING AS SCHEDULED (REFER TO STRUCT. DWGS.) 3" E.J. 19 10 19.1 10.1 2'-3". EQ EQ 6" 16GA. WALL CONSTRUCTION (REFER TO PLANS) F.R. SEALANT HANGER WIRE TO STRUCTURE 11'-0" A.F.F.
