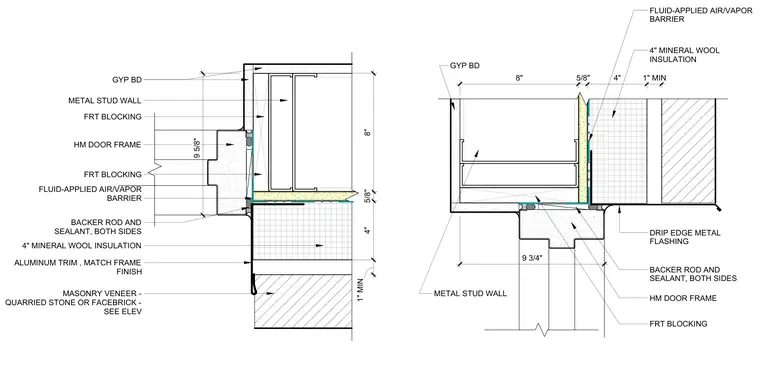

A hollow metal door frame sets within a cold-formed steel metal stud wall assembly finished with gypsum board on the interior and a masonry veneer on the exterior. The wall cavity contains 4 inches of mineral wool insulation backed by a fluid-applied air and vapor barrier over fire-retardant treated wood blocking. The door frame is secured adjacent to the framing with backer rod and sealant applied on both sides. A drip edge metal flashing and aluminum trim matching the frame finish are installed at the exterior transition to the quarried stone or face brick veneer.
FRT BLOCKING GYP BD METAL STUD WALL HM DOOR FRAME BACKER ROD AND SEALANT, BOTH SIDES FRT BLOCKING MASONRY VENEER - QUARRIED STONE OR FACEBRICK - SEE ELEV 4" MINERAL WOOL INSULATION FLUID-APPLIED AIR/VAPOR BARRIER 1" MIN 4" 5/8" 8" 9 5/8" GYP BD METAL STUD WALL HM DOOR FRAME BACKER ROD AND SEALANT, BOTH SIDES FRT BLOCKING 4" MINERAL WOOL INSULATION FLUID-APPLIED AIR/VAPOR BARRIER 1" MIN 4" 5/8" 8" 9 3/4" DRIP EDGE METAL FLASHING ALUMINUM TRIM , MATCH FRAME FINISH
