Stretched Fabric Ceiling Edge and Sloping Stud Wall Junction

Materials

Concrete Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Ceilings Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection

About this detail

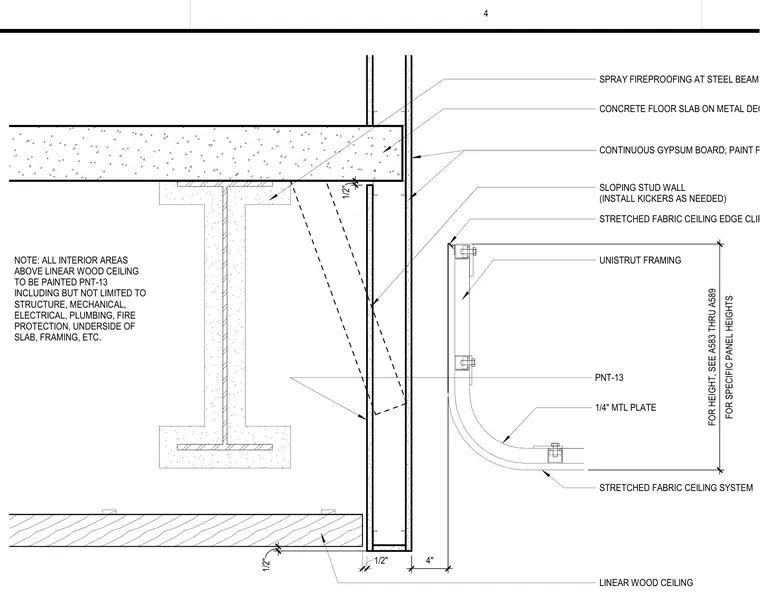

The junction between a linear wood ceiling, a stretched fabric ceiling system, and a sloping stud wall below a concrete floor slab on metal deck. The structural steel beam is protected with spray fireproofing and is finished with continuous gypsum board painted with PNT-1. A sloping stud wall is installed with kickers as needed, meeting the concrete slab with a half-inch clearance. The stretched fabric ceiling system utilizes Unistrut framing secured with a Barrisol edge clip and a one-quarter-inch metal plate. All interior areas above the linear wood ceiling are specified to be painted with PNT-13, covering the structure, mechanical, electrical, plumbing, fire protection, underside of the slab, and framing.
