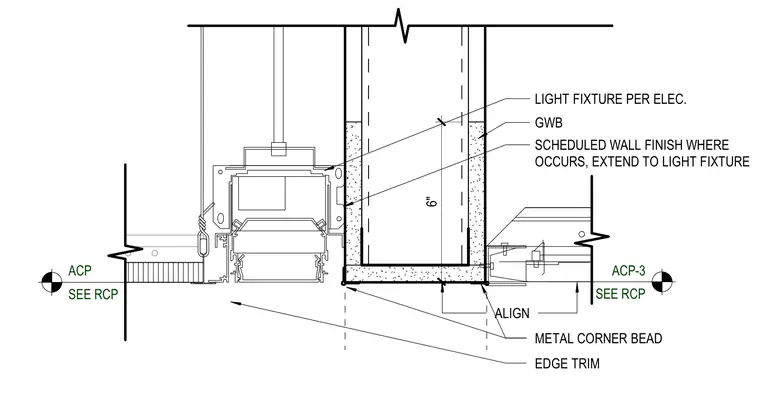

A six-inch gypsum wall board header integrates with a scheduled wall finish and light fixture per electrical plans. Edge trim and six-inch metal corner bead finish the gypsum board corner adjacent to aluminum composite panels. Aluminum composite panels align on both sides with details referenced per reflected ceiling plans.
LIGHT FIXTURE PER ELEC. SCHEDULED WALL FINISH WHERE OCCURS, EXTEND TO LIGHT FIXTURE ACP SEE RCP GWB ALIGN ACP-3 SEE RCP 6" METAL CORNER BEAD EDGE TRIM
