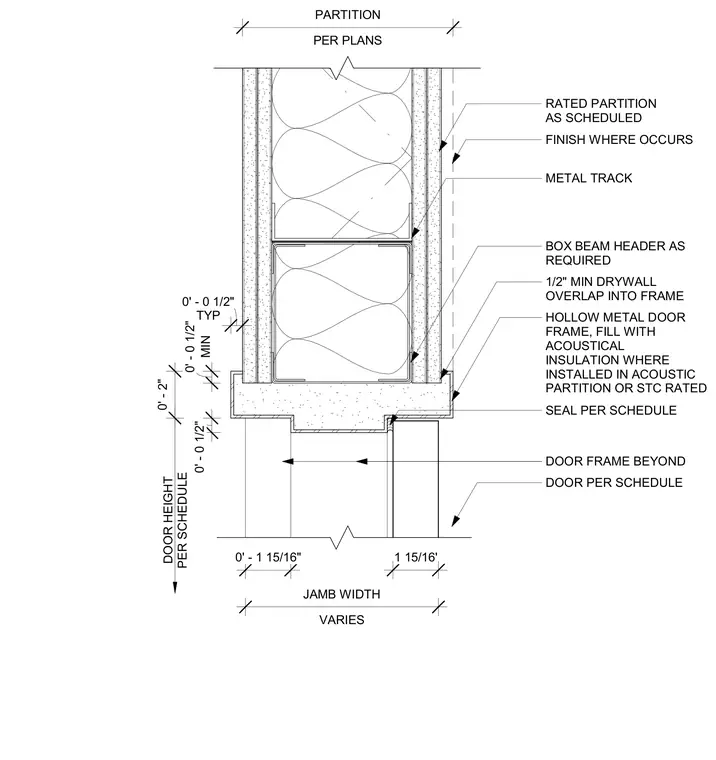

A hollow metal door frame connects to a rated metal stud partition and metal track assembly. A box beam header provides structural support above the opening as required. Gypsum board overlaps the frame by at least one-half inch. The hollow metal frame is filled with acoustical insulation when installed in an acoustic partition or STC-rated assembly. Sealant is applied per schedule.
VARIES JAMB WIDTH DOOR HEIGHT PER SCHEDULE 1 15/16' 0' - 0 1/2" PER PLANS PARTITION 0' - 1 15/16" 0' - 2" TYP 0' - 0 1/2" MIN 0' - 0 1/2" RATED PARTITION AS SCHEDULED SEAL PER SCHEDULE DOOR FRAME BEYOND BOX BEAM HEADER AS REQUIRED METAL TRACK DOOR PER SCHEDULE 1/2" MIN DRYWALL OVERLAP INTO FRAME HOLLOW METAL DOOR FRAME, FILL WITH ACOUSTICAL INSULATION WHERE INSTALLED IN ACOUSTIC PARTITION OR STC RATED FINISH WHERE OCCURS
