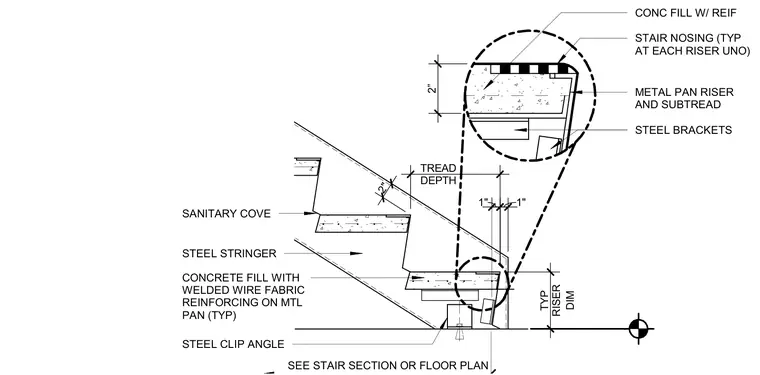

A structural steel stair stringer supports metal pan risers and sub-treads filled with concrete over welded wire fabric reinforcing. Steel brackets and a steel clip angle anchor the stair assembly. A sanitary cove sits at the base of the riser, and a stair nosing is typical at each riser unless noted otherwise.
2" 1" 1" 2” CONCRETE FILL WITH WELDED WIRE FABRIC REINFORCING ON MTL PAN (TYP) STEEL STRINGER STEEL CLIP ANGLE STEEL BRACKETS STAIR NOSING (TYP AT EACH RISER UNO) METAL PAN RISER AND SUBTREAD CONC FILL W/ REIF SEE STAIR SECTION OR FLOOR PLAN DIM TYP RISER SANITARY COVE DEPTH TREAD
