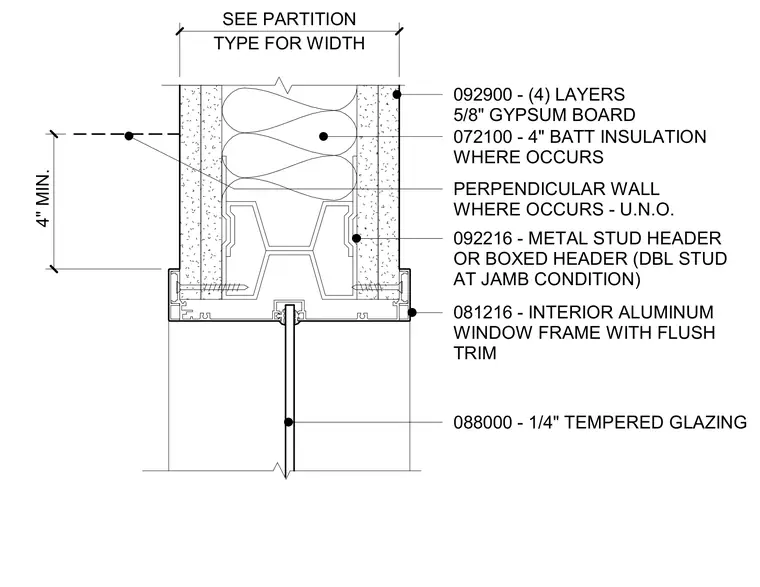

An interior aluminum window frame with flush trim is secured to a metal stud header or boxed header, utilizing double studs at the jamb condition. Four layers of five-eighths-inch gypsum board face the partition on each side where required, enclosing four-inch batt insulation. A one-quarter-inch tempered glazing pane is set into the aluminum frame. A perpendicular wall condition ties into the assembly where indicated.
092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081216 - INTERIOR ALUMINUM WINDOW FRAME WITH FLUSH TRIM 092900 - (4) LAYERS 5/8" GYPSUM BOARD PERPENDICULAR WALL WHERE OCCURS - U.N.O. 088000 - 1/4" TEMPERED GLAZING TYPE FOR WIDTH SEE PARTITION 072100 - 4" BATT INSULATION WHERE OCCURS 4" MIN.
