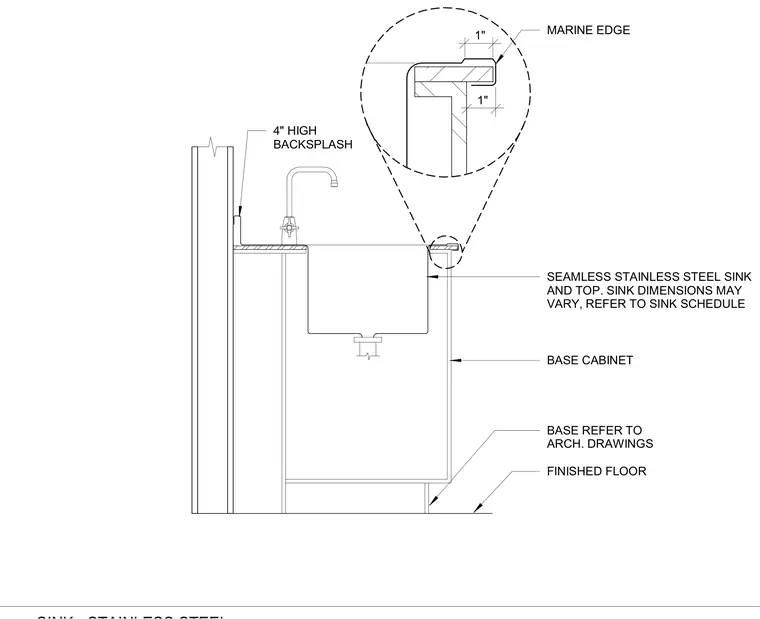

A seamless stainless steel sink and countertop are supported by a base cabinet set above the finished floor with a base conforming to architectural drawings. The countertop features a one-inch marine edge detail around its perimeter to contain liquid spills. A four-inch high backsplash extends upward where the countertop meets the wall. Sink dimensions vary per the sink schedule.
4" HIGH BACKSPLASH BASE CABINET FINISHED FLOOR MARINE EDGE BASE REFER TO ARCH. DRAWINGS SEAMLESS STAINLESS STEEL SINK AND TOP. SINK DIMENSIONS MAY VARY, REFER TO SINK SCHEDULE 1" 1"
