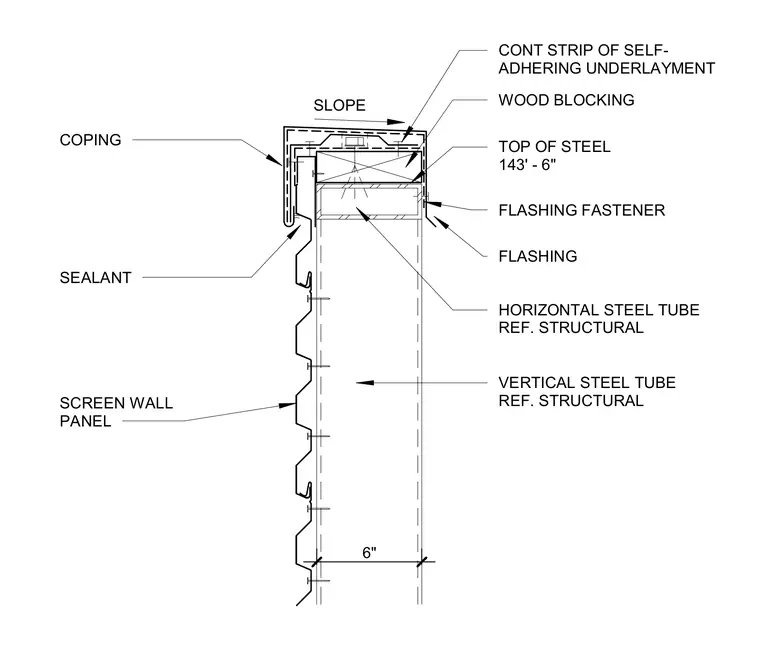

A rooftop screen wall coping assembly anchored to structural steel framing. A horizontal steel tube supports sloped wood blocking topped with a continuous strip of self-adhering underlayment and a metal coping flashing. The metal coping extends down over the top of the screen wall panel, secured with sealant at the joint. Flashing and fasteners integrate the assembly with the vertical steel tube framing and screen wall panels below.
VERTICAL STEEL TUBE REF. STRUCTURAL HORIZONTAL STEEL TUBE REF. STRUCTURAL SCREEN WALL PANEL WOOD BLOCKING SEALANT CONT STRIP OF SELF- ADHERING UNDERLAYMENT COPING FLASHING FASTENER FLASHING SLOPE TOP OF STEEL 143' - 6" 6"
