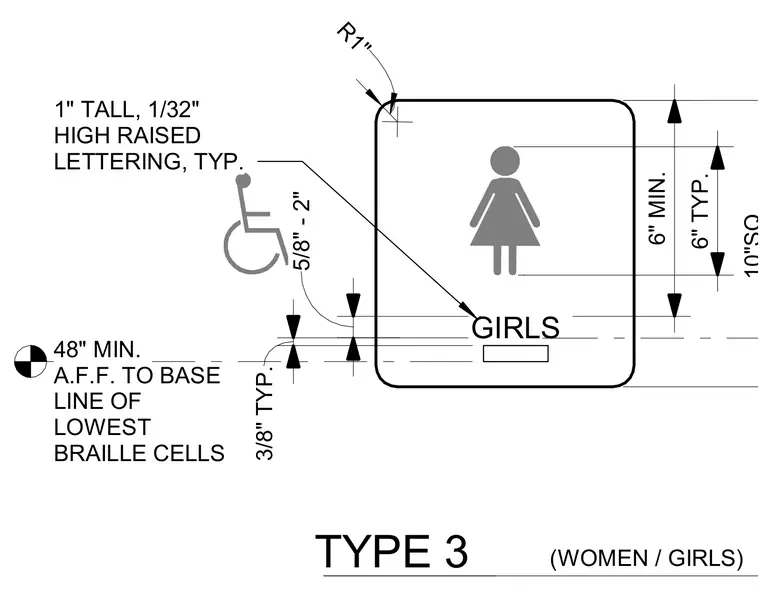

This Type 3 restroom sign features a 10-inch square layout with rounded corners of 1-inch radius. It incorporates the international accessibility symbol, a female pictogram, the text GIRLS in 1-inch tall raised lettering with 1/32-inch relief, and grade 2 braille below the text. Vertical dimensions specify a minimum 48-inch height above finished floor to the base line of the lowest braille cells.
TYPE 3 GIRLS 1" TALL, 1/32" HIGH RAISED LETTERING, TYP. (WOMEN / GIRLS) 3/8" TYP. R1" 6" TYP. 10"SQ. 5/8" - 2" 6" MIN. 48" MIN. A.F.F. TO BASE LINE OF LOWEST BRAILLE CELLS
