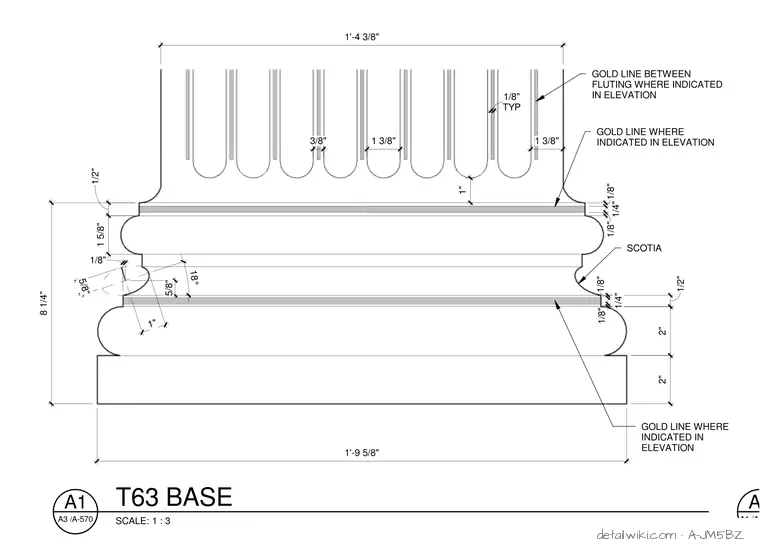

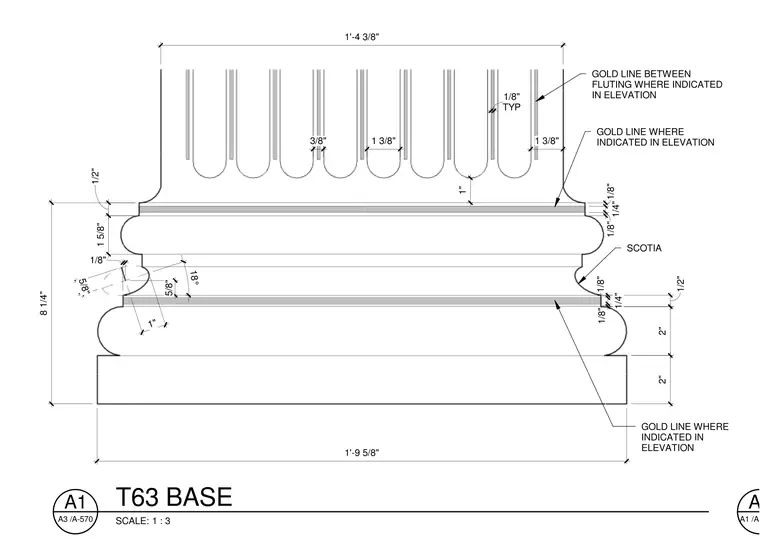

This architectural detail shows a decorative column base profile with vertical fluting measuring one and three-eighths inches wide spaced at three-eighths inches. The base features a scotia element with an 18-degree angle curve and a radius of five-eighths inches. Horizontal gold line accents are incorporated between the fluting and at designated band reveals as indicated in the elevation. Overall dimensions include a total width of one foot nine and five-eighths inches at the base and one foot four and three-eighths inches at the shaft, with a total base height of eight and one-quarter inches.
1/2" 1 5/8" 1/2" 1'-9 5/8" 1'-4 3/8" 3/8" 1 3/8" 2" 2" 8 1/4" 1" 1 3/8" GOLD LINE WHERE INDICATED IN ELEVATION GOLD LINE WHERE INDICATED IN ELEVATION TYP 1/8" GOLD LINE BETWEEN FLUTING WHERE INDICATED IN ELEVATION 1/8" 1/4" 1/8" 1/8" 1/4" 1/8" SCOTIA 18° 1" 5/8" 5/8" 1/8" SCALE: 1 : 3 A3 /A-570 T63 BASE A1 A1 /A-463E A2
