Pony Wall Top and Base Detail with Quartz Cap and Wood Panels

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Floors / Slabs Connections / Plates

Connections

HSS Connection

About this detail

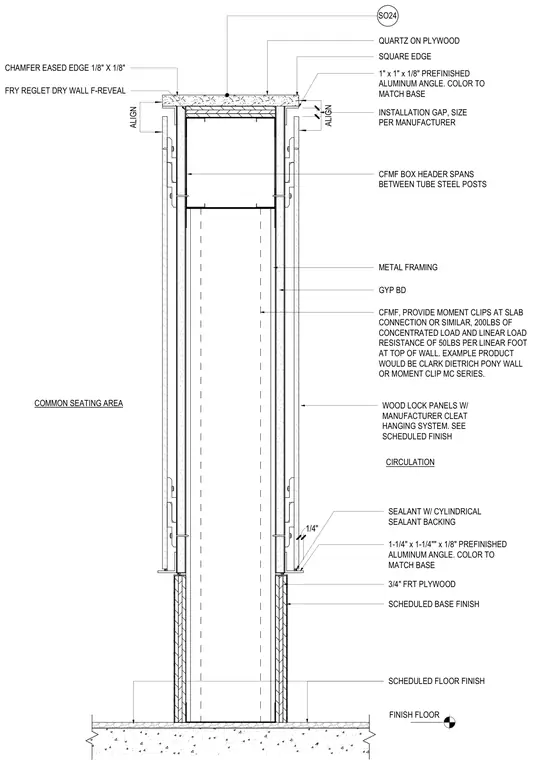

A pony wall assembly comprises cold-formed metal framing topped with a 3/4-inch fire-retardant-treated plywood substrate and a square-edge quartz cap. The assembly incorporates a cold-formed metal framing box header spanning between tube steel posts, supported by moment clips at the slab connection to resist a concentrated load of 200 pounds and a linear load of 50 pounds per linear foot. The wall sides feature wood lock panels hung with a manufacturer cleat hanging system over gypsum board framing, with Fry Reglet drywall F-reveals at the top edges. Prefinished 1-inch by 1-inch by 1/8-inch aluminum angles trim the top edge, while 1-1/4-inch by 1-1/4-inch by 1/8-inch prefinished aluminum angles occur above the base finish. Sealant with cylindrical sealant backing is provided at joints, above a 3/4-inch fire-retardant-treated plywood base backing down to the scheduled floor finish.
