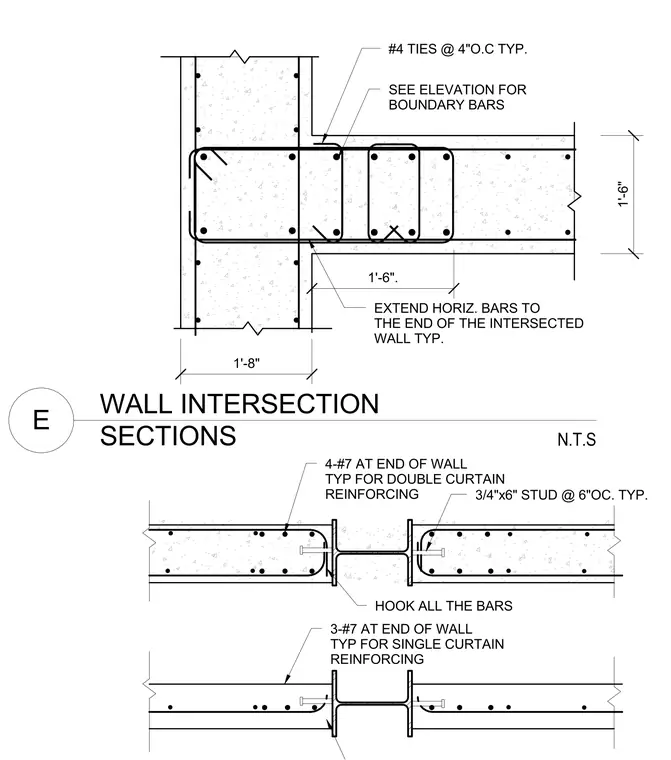

Concrete wall intersections feature reinforced concrete sections tied together with number 4 ties spaced at 4 inches on center. Horizontal reinforcing bars extend to the end of the intersected wall, with boundary bars sized per the elevation drawings. Wall ends incorporate either 4 number 7 bars for double curtain reinforcing or 3 number 7 bars for single curtain reinforcing, with all bar ends hooked. Steel column sections embedded at the wall joints utilize 3/4 inch by 6 inch studs spaced at 6 inches on center typical.
N.T.S E WALL INTERSECTION SECTIONS 1'-6" 1'-8" 1'-6". SEE ELEVATION FOR BOUNDARY BARS #4 TIES @ 4"O.C TYP. EXTEND HORIZ. BARS TO THE END OF THE INTERSECTED WALL TYP. 4-#7 AT END OF WALL TYP FOR DOUBLE CURTAIN REINFORCING HOOK ALL THE BARS 3-#7 AT END OF WALL TYP FOR SINGLE CURTAIN REINFORCING 3/4"x6" STUD @ 6"OC. TYP.
