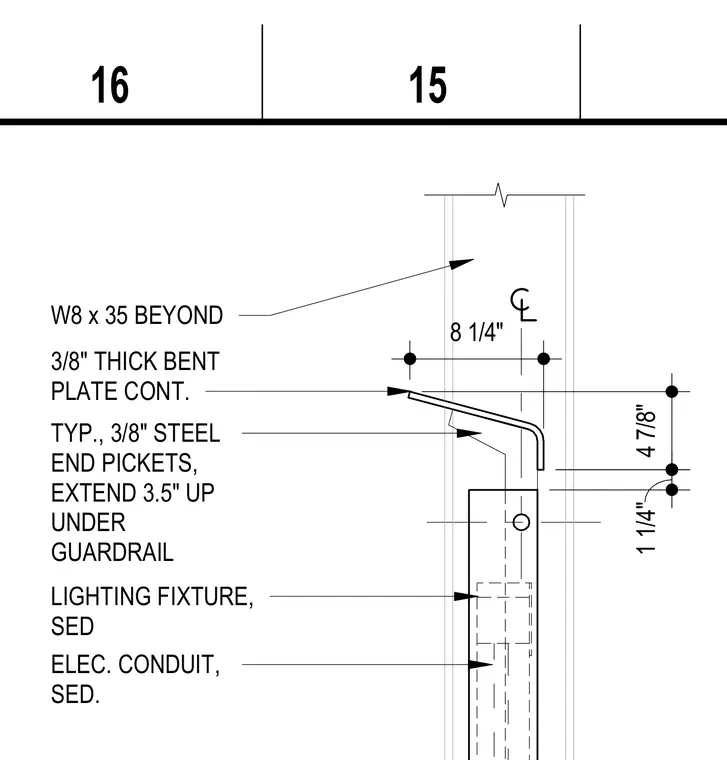

A continuous three-eighths-inch thick bent plate anchors above a steel assembly with a W8x35 wide-flange shape positioned beyond. Three-eighths-inch steel end pickets extend three and a half inches up underneath the guardrail. An internal electrical conduit and lighting fixture are accommodated within the vertical support member.
3/8" THICK BENT PLATE CONT. W8 x 35 BEYOND LIGHTING FIXTURE, SED ELEC. CONDUIT, SED. TYP., 3/8" STEEL END PICKETS, EXTEND 3.5" UP UNDER GUARDRAIL 8 1/4" 4 7/8" 1 1/4" 14 15 16
