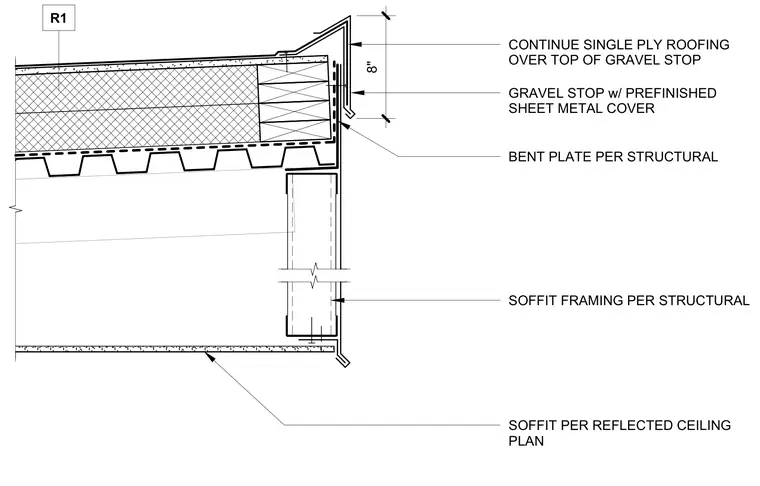

Single-ply roofing membrane continues over the top of an eight-inch gravel stop featuring a prefinished sheet metal cover. A bent plate is installed per structural drawings at the roof edge transition. Soffit framing is provided per structural drawings, finished with a soffit per the reflected ceiling plan.
R1 BENT PLATE PER STRUCTURAL SOFFIT FRAMING PER STRUCTURAL 8" GRAVEL STOP w/ PREFINISHED SHEET METAL COVER CONTINUE SINGLE PLY ROOFING OVER TOP OF GRAVEL STOP SOFFIT PER REFLECTED CEILING PLAN
