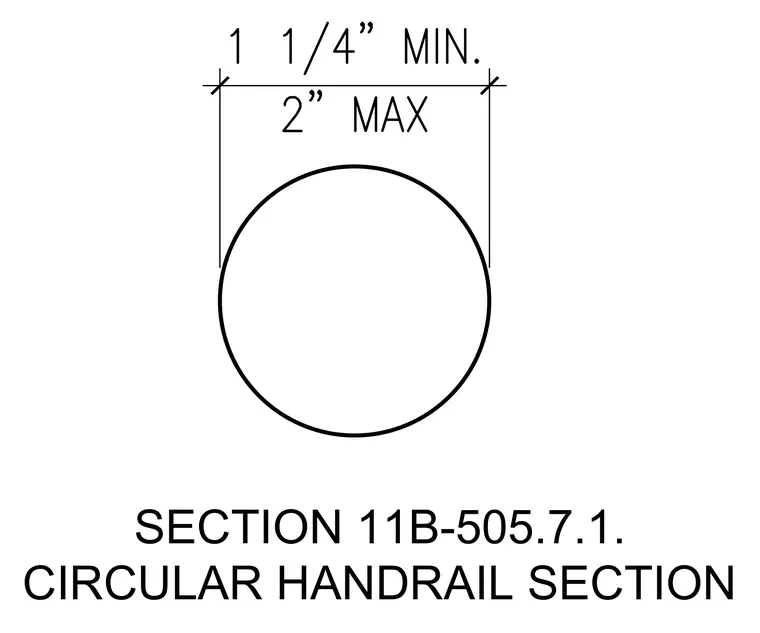

A circular handrail section profile with dimensioned outer diameter requirements. The minimum outside diameter is one and one-quarter inches and the maximum outside diameter is two inches.
SECTION 11B-505.7.1. CIRCULAR HANDRAIL SECTION
