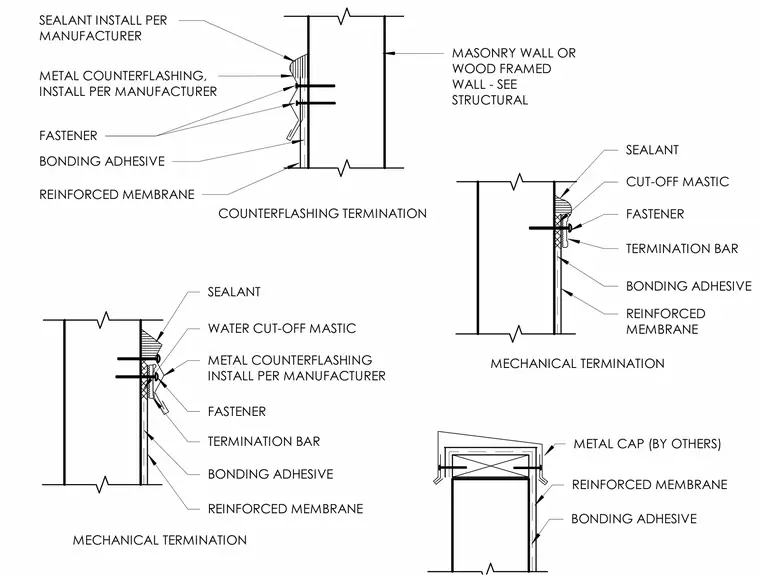

These architectural details illustrate various reinforced membrane flashing terminations applied to masonry or wood framed walls. The assembly consists of a reinforced membrane adhered with bonding adhesive to the wall substrate. Mechanical terminations utilize a termination bar secured with fasteners, bedded in water cut-off mastic, and finished with a bead of sealant along the top edge. Counterflashing terminations incorporate a metal counterflashing secured with fasteners and sealed at the top edge per the manufacturer's instructions. A parapet cap detail shows a wood-framed top with a metal cap installed over the reinforced membrane assembly.
BONDING ADHESIVE REINFORCED MEMBRANE METAL CAP (BY OTHERS) MECHANICAL TERMINATION MECHANICAL TERMINATION REINFORCED MEMBRANE BONDING ADHESIVE TERMINATION BAR FASTENER CUT-OFF MASTIC SEALANT REINFORCED MEMBRANE BONDING ADHESIVE TERMINATION BAR FASTENER METAL COUNTERFLASHING INSTALL PER MANUFACTURER WATER CUT-OFF MASTIC SEALANT COUNTERFLASHING TERMINATION REINFORCED MEMBRANE BONDING ADHESIVE METAL COUNTERFLASHING, INSTALL PER MANUFACTURER SEALANT INSTALL PER MANUFACTURER FASTENER MASONRY WALL OR WOOD FRAMED WALL - SEE STRUCTURAL
