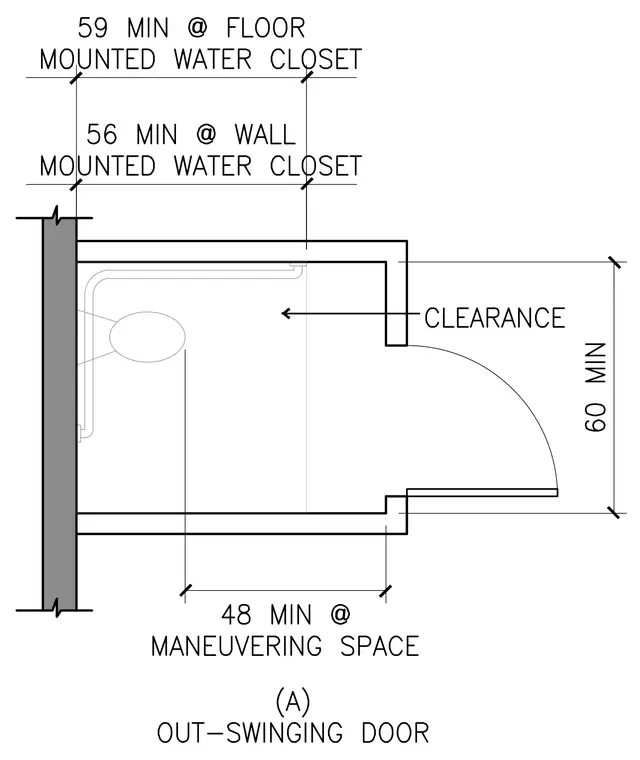

Accessible water closet compartment floor plan detailing required clearance dimensions and maneuvering space for floor-mounted and wall-mounted fixtures. The layout provides a minimum fifty-nine-inch depth for floor-mounted water closets and a minimum fifty-six-inch depth for wall-mounted water closets. A forty-eight-inch minimum maneuvering space is established along the approach with a sixty-inch minimum clear width perpendicular to the out-swinging door. Grab bars are indicated on the side and rear walls relative to the plumbing fixture.
